Product specifications
ContraFlex® CSP/PFP jackets/blankets are tested to both hydrocarbon pool and jet fire scenarios (UL1709 and ISO22899) to provide protection up to 180 minutes in the event of a fire. The system is utilised across oil & gas, petrochemical, LNG and nuclear projects globally.
- Cryogenic jet release as per ISO20088-3 for 60-minutes, <5°C temperature drop on the steel substrate
- Simple installation using first-fit Velcro-type hook and loop fastening
- Remain effective in ambient conditions as low as -52°C
- 75mm thickness
- Jet fire protection as per ISO 22899-1 of up to 120-minutes on piping, flanges, supports and valve assemblies (directly after cryogenic exposure)
- ISO 22899-1 Hydrocarbon Jet Fire.

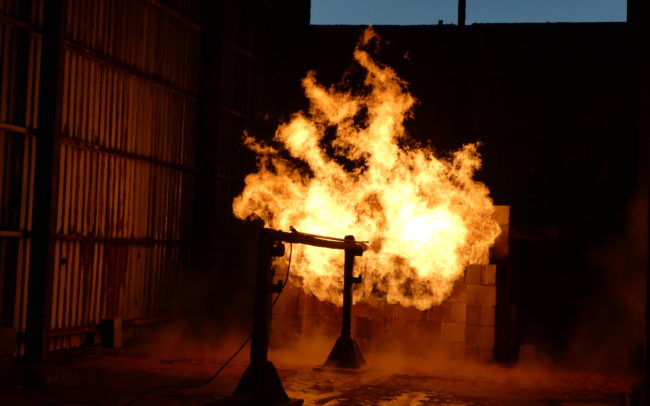

Tested for use in the toughest conditions
Product applications
AIS has a range of jacket/blanket solutions that can be used in applications worldwide to protect vessels and infrastructure onshore and offshore.

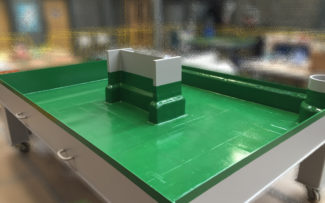

Cryogenic spill protection
Combined CSP and PFP or CSP only solutions to protect key structural elements from cryogenic spillage and jet fire.

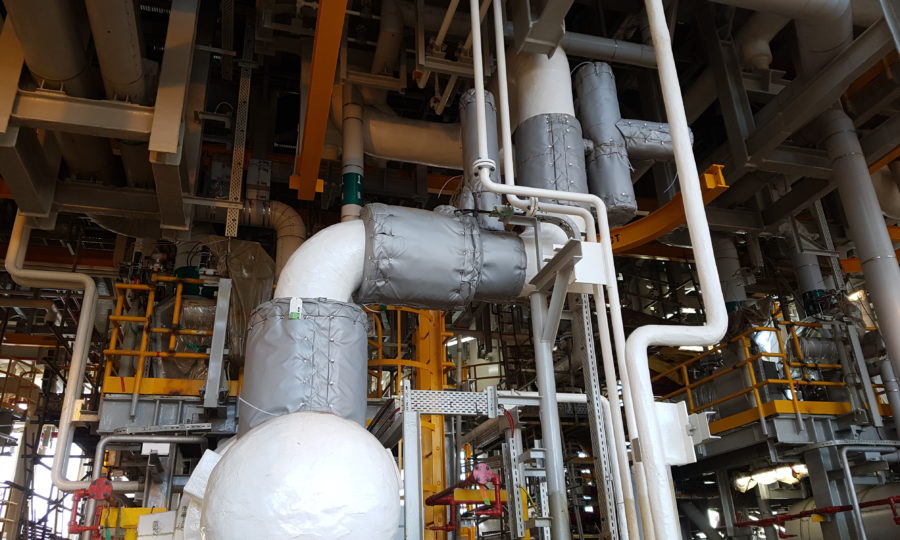

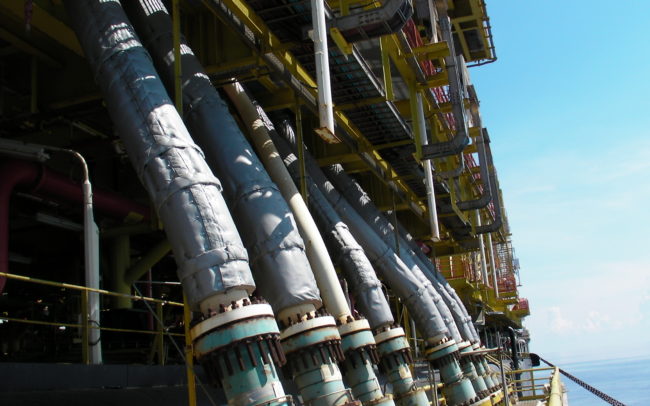

Pipes manifolds and flanges
Fully bonded phenolic coating system, bespoke pre-cast shells and jackets.
-325x203.jpg)

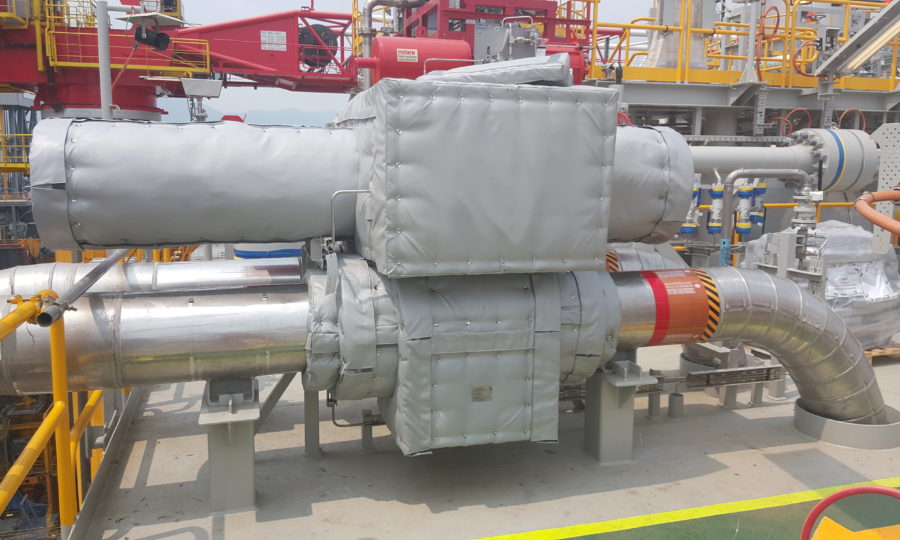

Valve and actuator protection
Suitable for valve assemblies in petrochemical plants, LNG installations, power plants, chemical plants and more.

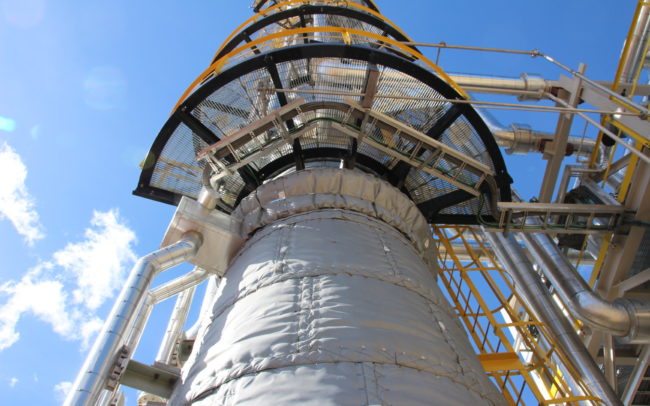

Vessel protection
Integrated thermal insulation, and passive fire protection for vessels, columns and spheres.
Product gallery
