Product specifications
The ContraFlame® FCP1- Series combines low thermal conductivity with superior fire resistance and can be used as a cell divider and cell spacer with prismatic or pouch battery cells. At high temperatures the product will create a barrier that is resistant to temperatures of up to 1300 °C, protecting the surrounding cells and helping to stop thermal runaway from propagating.
- Ultra-lightweight properties that add minimal weight to electric vehicles
- Available in different thicknesses allowing for a broad range of applications
- Forms an effective barrier against fire and flame
- Low thermal conductivity for surrounding cells, limiting temperature rise in surrounding cells
- Compression properties provide stability to cells throughout the lifetime of the battery pack
- Low smoke and toxicity during a fire.
Tested for use in the toughest conditions
Product applications
AIS has a range of passive fire protection solutions that can be used in applications worldwide to protect battery packs and related applications.
Module / pack enclosure
• Protection of aluminium, steel, and plastic module and pack enclosures
• Superior protection against jet-flames and high velocity particles
• Temperature resistance up to 1300 °C
• Mica-free solution
• Flexible and easy to cut in shape protection
Pouch cell
• Complimentary portfolio of safety materials
• Thermal barrier solutions and cell dividers
• Cell-to-cell thermal insulation and protection
• Stop thermal runaway with thermal barrier materials
• All solutions are mica-free and can be made locally
• Tested and verified with live cells

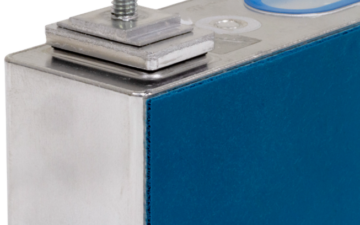

Prismatic cell
• Thermal barrier solutions, cell divider and rebound protection
• Cell-to-cell thermal insulation and protection
• Reduce the risk of a chain reaction through rebound protection solutions
• Mica-free and can be made locally
• Tested and verified with live cells (93 Ah to 234 Ah)
