Product specifications

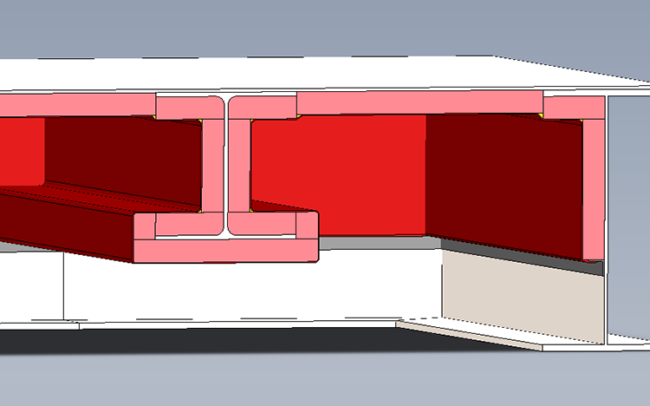

ContraFlame® MS400 system is based on unique syntactic phenolic foam and phenolic glass reinforced laminate. Pre-formed MS400 panels (1m x 1m) at a range of thickness 70-107mm are bonded to the underdeck and followed by the application of GRP laminate (3mm). The complete installation is jointless.

  • Tested and DNV certified for underdeck H120 (IMO 2010 FTP 3)
  • Successfully tested to jet fire and high heat flux events
  • System weight (pending application thickness) 9.3 to 12.5kg/m2
  • Surface spread of flame Class 1, BS476 part 7
  • Tested and DNV certified for bulkhead H60 (IMO 2010 FTP 3)
  • Acoustic reduction -50dB (ISO10140)76:20:1987)
  • Pass blast overpressure testing 1 bar kW/m²)
  • U Value up to 0.29W/m2K

Tested for use in the toughest conditions

Cost efficient

Robust, fast to install and lightweight, saving millions in costs for offshore structures.

80% weight saving

$100,000 saving per every tonne of topside weight.

Low temperatures

Suitable in cold climates with a track record in the Arctic Circle with lows of -50°C
