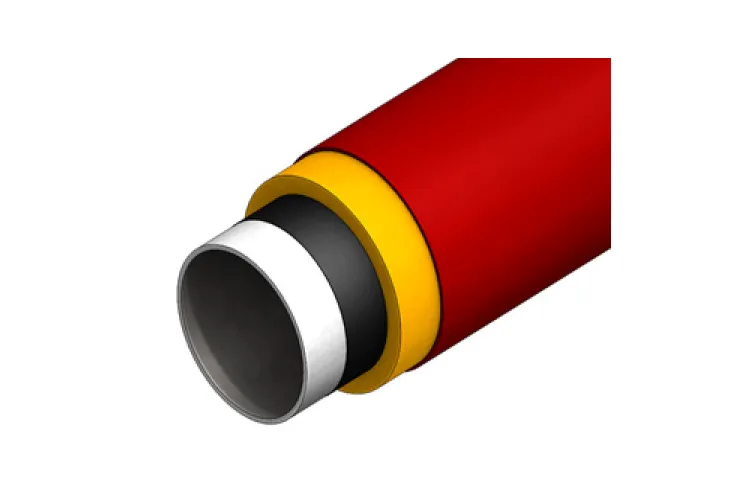

ContraFlame® JF60-200
ContraFlame® JF60-200 provides riser protection against jet fires up to 60 minutes duration with a critical temperature of 200 °C.
Item link
ContraFlame® C20 provides weather and passive fire protection to North Sea client
The offshore Martin Linge field is operated by TOTAL in the North Sea of Norway, and Samsung Heavy Industries were awarded the contract for the topside build. The project required both weather protection and H60 passive fire protection for 40 multi cable transit (MCT) areas. AIS provided ContraFlame® C20 thixotropic silicone to offer a complete solution.
Thermal
Oil & gas
Case Study
February 8, 2022
Item link
No items found.
2
Investors
Investors
Find the latest financial results, ASX announcements, company reports and key information about AIS and our ongoing growth.
Investor overview
Text Link
  • Investors home
    • Explore AIS investor information, financial performance, company announcements and updates from Advanced Innergy Holdings Ltd (ASX:AIH).
  • Investor relations
    • Find shareholding details, contact information, and investor resources via our share registry, Boardroom Pty Limited.
  • Corporate governance
    • Discover how Advanced Innergy Holdings Ltd upholds transparency, accountability, and ASX governance standards through clear policies and frameworks.
1
Company
Company
AIS is a global leader in the engineering, manufacture and application of insulation and passive fire protection systems, as well as buoyancy and SURF (subsea, umbilicals, risers and flowlines) products.
Company overview
Text Link
  • About us
    • We are an ambitious business, commited to embracing innovation and solving our customers' challenges.
  • News & insights
    • Take a look at our latest news and view our case studies.
  • History
    • Find out how we have evolved into a team of around 1,000 employees since starting out in 2007.
  • ESG
    • Discover more about the responsible business practices that shape our company.
  • QHSE
    • Our "Think Safe, Act Safe, Be Safe" programme promotes a culture where safety always comes first.
  • Careers
    • Join our globally diverse team to be part of a company where you can make a difference.
Breadcrumb
>
ContraFlame® jet deflectors

Deflect jet fires away from personnel and critical equipment

FPSO hulls and topsides are at risk from accidental high-pressure leaks/jet gas from externally mounted gas risers. Flanged connections are encased to repel any jet gas leaks which can reach 400 kg/s. ContraFlame® jet fire deflectors are a single acting, static device designed to be installed over risers and flanged connections to deflect jet gas leaks away from the hull and critical topside elements.

Request a quote
ContraFlame® jet deflectors
Benefits

Built for reliable, long-term protection of life and infrastructure

Designed for demanding offshore environments, ContraFlame® jet fire deflectors combine robust construction, low maintenance and long service life to provide dependable protection around critical riser and flanged connections.

Request a quote
Highly engineered
Expertly designed with AIS proven ContraFlame® materials and mechanical engineering expertise.
Robust & customisable
Designed for 25+ years operation in harsh offshore conditions with minimal servicing required and are built to meet project requirements.
Proven track record
AIS jet deflectors have an established track record on multiple FPSO operations around the world.

Specifications

  • Jet fire passive fire protection, up to 60 minutes
  • Hydrocarbon pool fire passive fire protection
  • Closed cell structure
  • Waterproof cover SS316
  • Secured with SS316 bolts and fixings
  • Very low smoke and toxic fumes in fire conditions
  • Tolerance to temperatures between -196 °C and +185 °C.

‍

Applications

Request a quote
  • FPSO risers
    • Deflects potential high-pressure gas leaks and jet fires away from the hull and critical topside elements
  • Riser flanged connections
    • Provides a protective cover around vulnerable flange connections where gas leaks could create a jet fire hazard
  • Offshore topsides
    • Helps direct jet fires away from critical process equipment and personnel
  • Gas riser connections
    • Provides a static barrier around externally mounted risers to reduce the impact of accidental high-pressure releases
  • Critical process equipment
    • Helps prevent high-velocity gas jets and fires from reaching nearby equipment and infrastructure.
