Product specifications

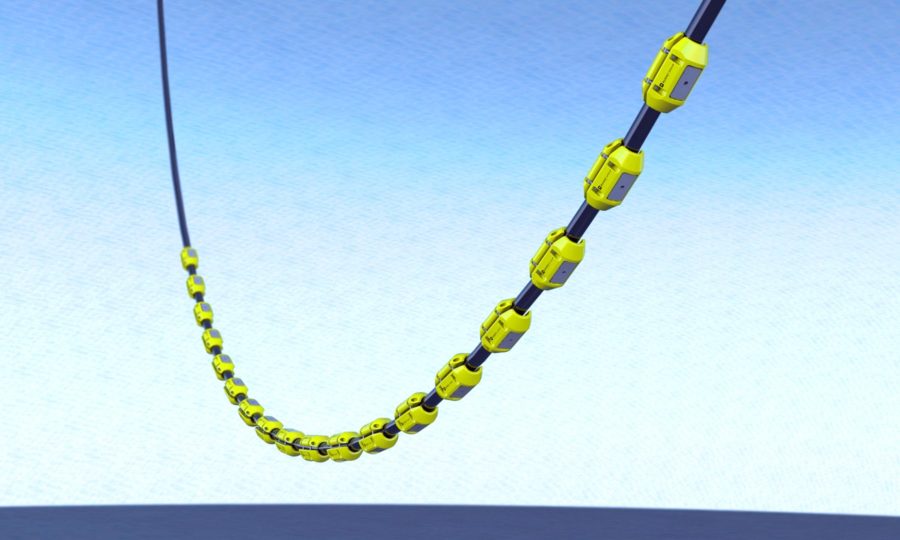

Bardot Ballast Modules provide additional weight on flexible pipes, umbilicals and cables to ensure the bottom stability (Static) or create the lazy wave shape (Dynamic).

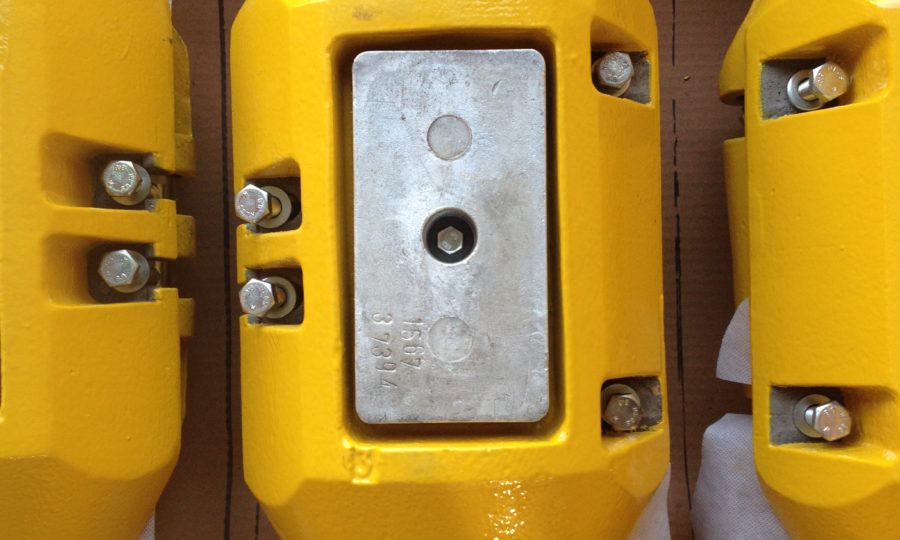

  • To protect them from corrosion, the steel modules are equipped with sacrificial anodes

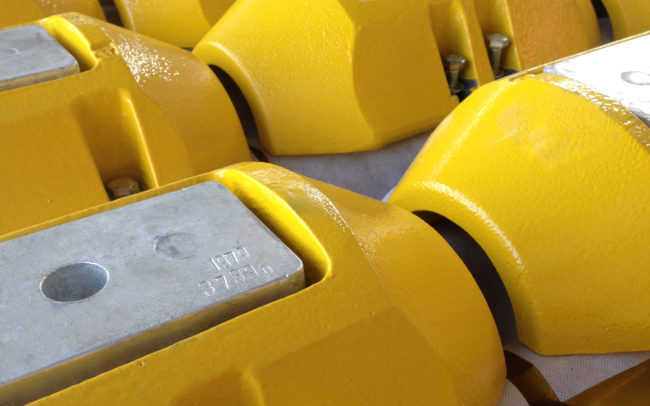

  • Iron cast ballast modules add the submerged weight required to stabilise the line or to create the lazy-wave profile
  • Designed in compliance with international offshore standards, including API17-L1, API17-L2, DNV –RP- B401 and NORSOK M501 – System 7b
  • Each Iron cast ballast module is designed with an elastomeric Pad inside, compatible with MBR requirements.

Tested for use in the toughest conditions


Materials used have been selected for their durability over time meaning that once installed, no maintenance is required.


Iron Cast Ballast Modules are designed to withstand extreme loads. All designs are tested in full scale at their limit.


Half shells are painted with yellow coloured resin to comply with offshore standards regarding subsea visibility and cathodic protection NORSOK M 501 System 7b.
